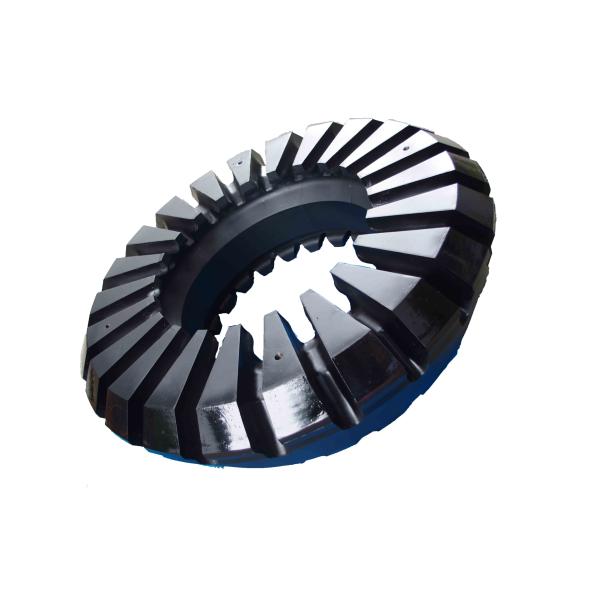

Diverter Sealing Element 5000 Psi Tapered Rubber Seal Blowout
Preventer Equipment
Product Description
It is used to prevent blowout during drilling in oil development
and geological drilling. Its function is to hold various
specifications of drill pipes and
downhole appliances through the control system, seal the wellhead,
and prevent oil and gas from blowing out.
The product can match and interchange most of domestic BOP
manufactories, (such as Shanghai Shenkai, Huabei Rongsheng,
Chuanyou
Jingkong, Baoji Oil,Jiangsu Xinde, Jiangsu Sanyi, etc). Over the
years usage in the oil fields, it has been proved that all the
technical
requirements and performance of our products can reach the
standards of shaffer sealing elements for replacement.
It can be customized according to customers’ specific requirements
of temperature, pressure and environment conditions.
Temperature Range:—45 ℃~180℃
Purpose of Diverter Rubber Core
This flow divider is used for well control when drilling surface
wellbore in oil and gas well drilling. The flow divider and
hydraulic control system
It is used in conjunction with systems, four-way connections,
valves, etc. to transport controlled low-pressure well fluids
(liquids and gases) to safe locations according to prescribed
routes to ensure the safety of drilling operators and equipment. It
can seal various shapes and sizes of kelly, drill pipe, drill pipe
joints, drill collars, casing and other drilling tools, while
diverting the fluid in the well.
Parameter
| BOP Size and Working Pressure | Spherical Sealing Element Size |
| OD(mm) | ID(mm) | H(mm) |
| 7 1/16″-5,000psi | FH18-35 | 478 | 189.5 | 219 |
| 9″-5,000psi | FH23-35 | 616 | 242 | 290 |
| 11″-3,000psi | FH28-21 | 703 | 296 | 284 |
| 11 ″-5,000 psi | FH28-35 | 703 | 290 | 319 |
| 11 ″-10,000 psi | FH28-70 | 755 | 310 | 344 |
| 13 5/8 ″-5,000 psi | FH35-35 | 810 | 360 | 368 |
| 13 5/8 ″-10,000 psi | FH35-70 | 833 | 360 | 365 |
| 20 3/4"-3,000psi | FH53-21 | 982 | 545 | 400 |
