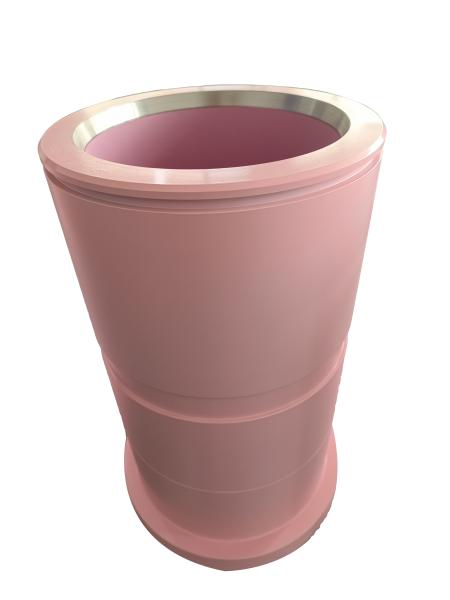

Bomco F-1600 Mud Pump Ceramic Liner Aluminium Copper Alloy Suitable
For Shallow Wells
Ceramic Liner Product Description
1. This product is produced through fine sintering, precision
machining and specific grinding using the patented structure and
formula of independent intellectual property rights.
2. The normal working pressure is increased by 5-10%, and the
normal service life is not less than 3000 hours under the
conditions of no partial wear, no water shortage, and no
overpressure.
3. Ceramic composition: aluminum, zirconium, manganese, barium,
cerium; the total content of aluminum, zirconium, chromium and
barium is more than 95%, and the metal 45# round steel is
integrally forged.
4. The smoothness is less than 0.30, the strength is greater than
400, no bright lines, no scratches.
5. About 1.8 times the price of bimetal cylinder liner.
6. All models and specifications at home and abroad can be
processed.
7. This series of products has the lowest unit price and is
suitable for shallow wells.
8. There are scratches and peeling phenomena during partial wear.
Ceramic Liner and Ceramic Plunger Performance Index
| Item | Pure Zirconia Ceramic Liner | Zirconia Base Ceramic Liner | Composite Ceramic Liner | Aluminum Chrome Ceramic Liner |
| Average Grain Size(μm) | ≤1.5 | ≤2.5 | ≤3 | ≤4 |
| Rockwell Hardness(HRA) | ≥91 | ≥92 | ≥92 | ≥91 |
| Bending Strength (MPa) | ≥900 | ≥700 | ≥580 | ≥450 |
| Water Absorption Rate(%) | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.02 |
| Fracture Toughness(MPa.M1/2) | ≥10 | ≥8 | ≥9 | ≥6 |
| Volume Density(g/cm³) | ≥6.0 | ≥4.45 | ≥4.25 | ≥3.95 |
| Product Finish(μm) | ≤0.15 | ≤0.20 | ≤0.20 | ≤0.3 |
We offer the following liners and more:
EMSCO: F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, D-375,
D-700;
Gardner Denver: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11;
IDECO: T-500, T-800, T-1000, T-1300, T-1600
Nationals: 7P–50, 8P–80, 9P–100, 10P-130, 12P–160, K-700, K-700A,
K-500, K-500A,
OilWell: A–350PT, A–560PT, A–600PT, A–850PT, A–1100PT, A–1400PT,
A–1700PT
Omega: Opi1000; LS: 3NB-800, 3NB-1000, 3NB-1300, 3NB1300C,
3NB-1300C;
QZ: Sl3NB-1300, Sl3NB-1300A, Sl3NB-1300B, Sl3NB-1600.
