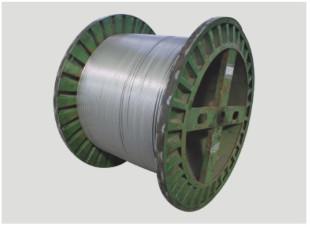

0.25'' To 0.625'' Hydraulic Control Line Oil Drilling 316L 2205
13Cr 825 2507
Feature
The hydraulic control pipeline can be used in the field of
petroleum and natural gas, the control of safety valve in oil and
gas wells, the control of
the gas release valve of the packer through cable, the injection of
underground chemical agent, and the transmission of underground
hydraulic
power.
Special points:good corrosion resistance,suitable for various
downhole conditions;customizable length to meet the requirements of
different well
depths.High external diameter accuracy ,easy to seal and high
temperature resistance to pressure operation material 825.
Quality of material:316L,321,825,2205,2507,625
Gauge lattice:1/8”,1/4”,3/8”,5/8”,3/4”
Wall thickness range:0.035”-0.094”
Coiled Tubing Size
| Specification | Wall Thickness | Mass Per Unit Length | Calculation Internal Diameter | Cross Sectional Area | Yield Strength | Tensile Strength | The Tube Body Load | Minimum Test Pressure |
| Specified | Minimum | Min Yield Sress | Min Tensile Stress |
| t | tmin | wpe | d | | | | | | |
| OD | Wall Thickness | In | In | lb/ft | In | SQIN | psi | psi | LBS | LBS | psi |
| 1/4 | 0.250 | 0.035 | 0.035 | 0.032 | 0.09 | 0.180 | 0.0236 | 90,000 | 116,000 | 2,100 | 2,700 | 15,000 |
| 0.250 | 0.049 | 0.049 | 0.044 | 0.11 | 0.152 | 0.0309 | 90,000 | 116,000 | 2,800 | 3,600 | 15,000 |
| 0.250 | 0.065 | 0.065 | 0.059 | 0.13 | 0.120 | 0.0378 | 90,000 | 116,000 | 3,400 | 4,400 | 15,000 |
| 3/8 | 0.375 | 0.035 | 0.035 | 0.032 | 0.13 | 0.305 | 0.0374 | 90,000 | 116,000 | 3,400 | 4,300 | 12,100 |
| 0.375 | 0.049 | 0.049 | 0.044 | 0.18 | 0.277 | 0.0502 | 90,000 | 116,000 | 4,500 | 5,800 | 15,000 |
| 0.375 | 0.065 | 0.065 | 0.059 | 0.22 | 0.245 | 0.0633 | 90,000 | 116,000 | 5,700 | 7,300 | 15,000 |
| 0.375 | 0.080 | 0.080 | 0.072 | 0.26 | 0.215 | 0.0741 | 90,000 | 116,000 | 6,700 | 8,600 | 15,000 |
| 1/2 | 0.500 | 0.049 | 0.049 | 0.044 | 0.24 | 0.402 | 0.0694 | 90,000 | 116,000 | 6,200 | 8,100 | 12,700 |
| 0.500 | 0.065 | 0.065 | 0.059 | 0.31 | 0.370 | 0.0888 | 90,000 | 116,000 | 8,000 | 10,300 | 15,000 |
| 0.500 | 0.080 | 0.080 | 0.072 | 0.37 | 0.340 | 0.1056 | 90,000 | 116,000 | 9,500 | 12,200 | 15,000 |
| 5/8 | 0.625 | 0.049 | 0.049 | 0.044 | 0.31 | 0.527 | 0.0887 | 90,000 | 116,000 | 8,000 | 10,300 | 10,200 |
| 0.625 | 0.065 | 0.065 | 0.059 | 0.40 | 0.495 | 0.1144 | 90,000 | 116,000 | 10,300 | 13,300 | 13,500 |
