Coiled Tubing Unit Trailer -Mounted Model FR270 Max.Tension of
Injector 60000 LBS WP 5000psi
60k Trailer Mounted CTU
FORUS company is engaged exporting oil drilling machine and
equipment. Our goal is to meet customers’ different requirements,
supply high quality
products with best price.
We has a professional team to provide efficiently service, quickly
action. Integrity is the cornerstone of our development. Our
equipments have
exported many countries, including Kuwait, UAE., Egypt, Indonesia,
Russia, USA, Kazakhstan etc., and we are widely praised by our
clients.
Product Model
| Specification | FR270 | FR360 | FR450 |
| Structure | Vehicle-mounted/Trailer/Skid-mounted | Vehicle-mounted/Trailer/Skid-mounted | Vehicle-mounted/Trailer/Skid-mounted |
| Chasis | HOWO(Special Vehicle) | HOWO(Special Vehicle) | HOWO(Special Vehicle) |
| Power | 480HP/500HP | 480HP/500HP | 480HP/500HP |
| Injector | SVM-60K | SVM-80K | SVM-100K |
| Drum Capacity | 1.25”-5000m/1.5”-5000m | 2”-5000m | 2”-6000m |
| Blowout Preventer | 2.56/3.06(10K) | 3.06(10K)/4.06(10K/15K) | 4.06/5.12(10K/15K) |
| The main vehicle dimension | 11980x2550x4000mm |
| The main vehicle weight | 37t |
| Drum car dimension | 11950x2880x4360mm |
| Auxiliary vehicle weight | 58t(2''-6000m)
|
CTU Introduction
The coiled tubing unit (CTU for short) is known as the "universal
operating equipment". It has been widely used in oil and gas field
workover,
drilling, completion, logging, gathering, transportation,
stimulation and other fields.
Compared with conventional operation technology, ct truck has
outstanding advantages and features:
1. Low operating cost. Costs are directly reduced due to fewer CTU
equipment, shorter time to move, install, and prepare for
operations, and
faster and less work to pull up and run tubing.
2. To increase the production of oil Wells, redrilling or lateral
drilling of old Wells can increase the production of old Wells
without economic
benefit.
3, protect oil layer, operation safety. For sensitive bottom layer,
continuous operation can be carried out without spraying, releasing
pressure and
with pressure to prevent formation pollution, protect the formation
and increase production.
Coiled tubing equipment can be used in different ranges depending
on the equipment's performance parameters. It is mainly used for
sand
flushing, acidizing and well washing, gas lift drainage, wax
removal, fishing, well sealing and other operations and stimulation
measures.
Equipped with relevant tools, it can carry out perforation, drag
fracturing, drilling and grinding bridge plug, drilling and other
ultra-deep shale gas
and oil well construction operations, and cable coiled tubing can
be used for downhole logging operations.
Feature
• Wide product range, vehicle-mounted (type ii chassis), trailer
and skid mounted coiled tubing equipment.
• The whole hydraulic drive, can realize centralized control of
equipment in the operating room, real-time monitoring of equipment
operation
parameters and key monitoring points, using electronic control of
the hydraulic control of each subsystem, good reliability, more
user-friendly
operation, high degree of automation, operating room wide vision,
large internal space.
• Equipped with data acquisition system, processing the data of
each collection point through PLC, with operation parameters
reading, real-time
curve and historical curve loading display and export, operation
point history record storage and export, etc., optional tubing
fatigue analysis and
string simulation functions.
• Conventional tubing drum is driven by planetary reducer, with
high reliability. Customers can also choose logging tubing drum,
DID quick-
disassembly drum, etc., according to their needs, equipped with HD
monitoring device.
• Accurate tubing counting system, equipped with high-definition
monitoring device, more accurate operation.
• BOP ram movements can be recorded and queried, and both
electrical and mechanical unlocking is required for operation
• It can remotely monitor site construction data and alarm
information through mobile network (4G, etc.) on mobile phone or
computer, and store
key data to remote cloud server to view historical data.
• Easy and efficient replacement of injector head holder for 1 "to
2.875" tubing.
Coiled Tuibing Unit Main Components

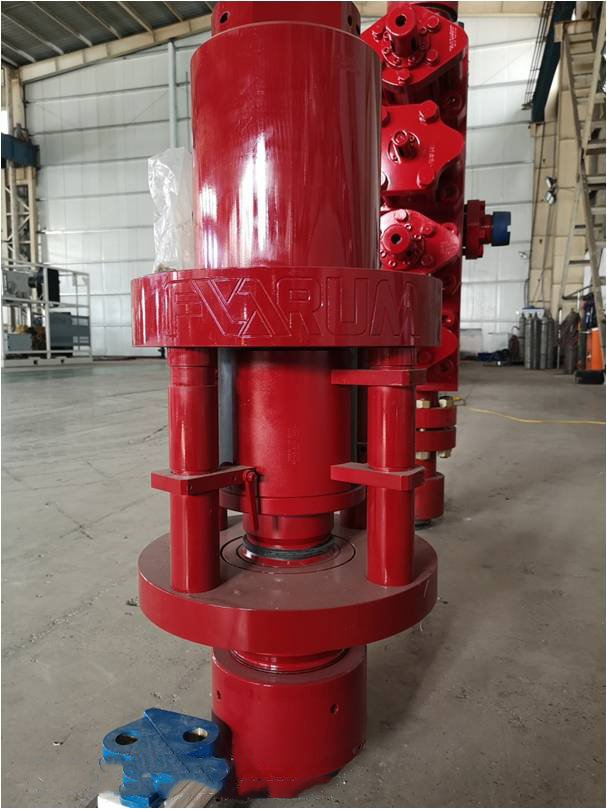

| No. | Components Name | Specifications | Brand | Remark |
| 1 | Chasis | ZZ5447V547GE1 | Heavy duty vehicle | Vehicle -mounted |
| 2 | Engine | C13 | CAT | Skid-mounted |
| 3 | Transfer Case | / | Gemany | |
| 4 | Hydaulic pump and motor | / | PARKER | |
| 5 | Control Room | / | FORUS | |
| 6 | Injector | / | FORUS | |
| 7 | BOP System | / | FORUM | |
| 8 | High Pressure Manifold | / | FORUS | |
| 9 | Chicksan | / | FORUM | |
| 10 | Data Collection System | / | FORUS | |
| 11 | Hydaulic line | / | EATON/Manuli | |
Cases
1.Coiled tubing ray logging operation
- Grade:CT110 Spec:50.8*4.4mm Length:5000m
2. 1.Coiled tubing negative pressure sand washing operation
- Grade:CT80 Spec:50.8*4.4mm Length:4000m
