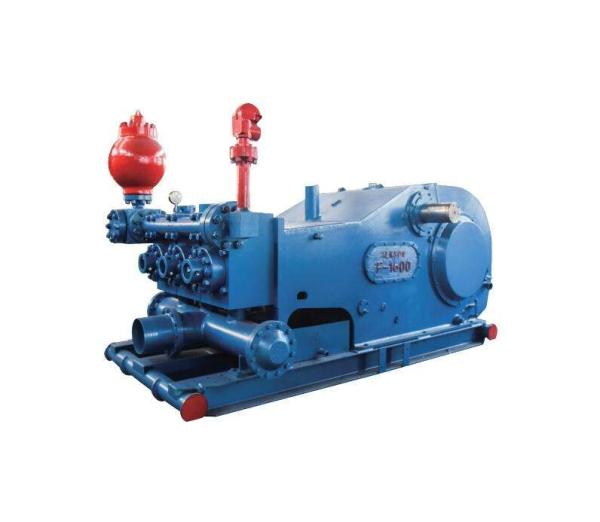

Drilling Mud Pump For RS F-1600 Mud Pump Horsepower 1600
Specific Parameter
| Pump Model | RS-F1600 |
| Rated input power | 1180kw(1600HP) |
| Stroke | 120 min-1(120SPM) |
| Stroke Length | 304.8mm(12") |
| Gear ratio | 4.206:1 |
| Max.working pressure | 34.5MPa |
| Valve | API#7 |
| Max.cylinder diameter | 7 1/4" |
| Max.cylinder pressure | 23.3MPa |
| Suction pipe diameter | 305mm(12") |
| Discharge pipe diameter | 5 1/8" Flange(5000psi) |
| Pinion diameter | 215.9mm(8.5") |
| Key | 50.8×50.8mm(2"×2") |
| Dimensions(mm) | 4684×2413×2063 |
| Weight of main machine | 24751kg |
| Table of Relation between Discharge and Pressure of RS-F1600 mud
pump |
| | | | | | | | | | |
| Cylinder diameter | | in | 7 1/4 | 7 | 6 3/4 | 6 1/2 | 6 1/4 | 6 | 5 1/2 | 5 |
| Discharge pressure | Mpa | 21.7 | 23.3 | 25.1 | 27.1 | 29.2 | 31.7 | 34.5 | 34.5 |
| psi | 3146 | 3345 | 3750 | 3930 | 4235 | 4820 | 5000 | 5000 |
| Stroke | Input power | | Discharge capacity(L/s) |
| min-1 | KW | Horsepower |
| 120 | 1180 | 1600 | 48.71 | 45.41 | 42.22 | 39.15 | 36.2 | 33.36 | 28.03 | 23.17 |
| 110 | 1078 | 1462 | 44.65 | 41.63 | 38.7 | 35.89 | 33.18 | 30.58 | 25.69 | 21.24 |
| 100 | 980 | 1329 | 40.59 | 37.84 | 35.18 | 32.63 | 30.17 | 27.8 | 23.36 | 19.31 |
| 90 | 882 | 1196 | 36.53 | 34.06 | 31.67 | 29.36 | 27.15 | 25.02 | 21.02 | 13.38 |
| 50 | 490 | 664 | 20.29 | 18.92 | 17.59 | 16.31 | 15.08 | 13.9 | 11.68 | 9.65 |
| 1 | 98 | 133 | 0.406 | 0.3784 | 0.3518 | 0.3263 | 0.3017 | 0.278 | 0.2336 | 0.1931 |
| (Mechanical efficiency 90%,coefficiet of fullness α=100%, and
volumetric efficiency 100%) | |
Mud Pump Set Solution
| No. | Content | Unit | Qty |
| 1 | RS-F800 drilling mud pump, 2.2Kw Electric spray pump;device, KB-45
discharge pulsation dampener;assembly(12gal, 5000psi), 15"
discharge 5-way(filter;inside), JA-3 shear pin safety
valve(35MPa),Anti-vibration pressure gauge(0-6000psi), 5" Cylinder
liner, piston. | SET | 2 |
| 2 | CAT C27 diesel engine 875HP@1800-210RPM( including water tank,
fan,muffler, oil cooler) | SET | 2 |
| 3 | ALLISON Hydraulic Transmission S6620 | SET | 2 |
| 4 | Public Base of Diesel engine and Transmission | SET | 2 |
| 5 | Coupler DOX300F-400 and Coupler Shield | SET | 2 |
| 6 | Pump hanging chain transmission box | SET | 2 |
| 7 | Chain box electric lubrication system | SET | 2 |
| 8 | Power infusion pump (45KW, 380V,50HZ) and manifold | SET | 2 |
| 9 | Big base | SET | 2 |
| 10 | Control system | SET | 2 |
| 11 | Attachment tools | SET | 2 |
| 12 | Attachment spare parts | SET | 2 |
| 13 | Assembly and debugging cost | SET | 2 |
| 14 | Packing cost (nude packing )and Freight(Shanghai port) | SET | 2 |
Supply Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT,
A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220,
C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600,
FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
