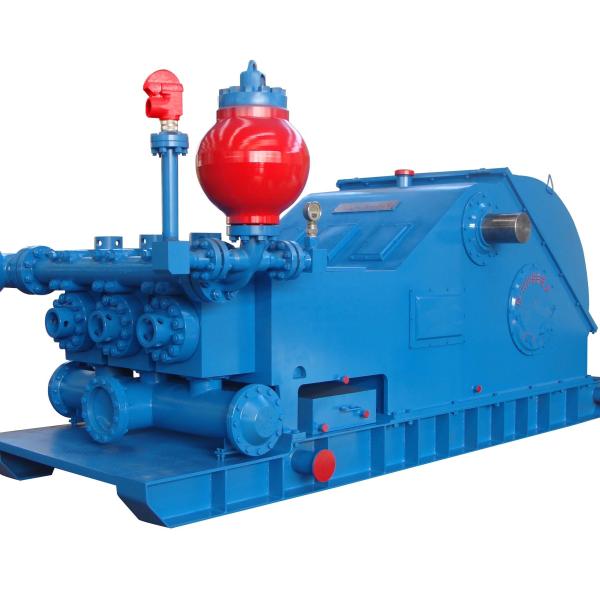

Drilling Mud Pump For RS F-2200 Horsepower 2200 API 7K
Specific Parameter
| Pump Model | RS-F2200 |
| Rated input power | 1640kw(2200HP) |
| Stroke | 105 min-1(105SPM) |
| Stroke Length | 356mm(14") |
| Gear ratio | 3.512:1 |
| Max.working pressure | |
| Valve | API#8 |
| Max.cylinder diameter | 9" |
| Max.cylinder pressure | |
| Suction pipe diameter | 305mm(12") |
| Discharge pipe diameter | 5 1/8" Flange(10000psi) |
| Pinion diameter | 254mm(10") |
| Key | 63.5×44.45mm(2-1/2"×1-3/4") |
| Dimensions(mm) | |
| Weight of main machine | 38460kg |
| Table of Relation between Discharge and Pressure of RS-F2200 mud
pump |
| | | | | | | | | | | | |
| Cylinder diameter | | in | 9 | 8 5/8 | 8 1/4 | 7 7/8 | 7 1/2 | 7 | 6 3/4 | 6 1/2 | 6 | 5 1/2 |
| Discharge pressure | Mpa | 19 | 20.8 | 22.8 | 25.1 | 27.9 | 31 | 34.5 | 34.5 | 34.5 | 34.5 |
| psi | 2760 | 3015 | 3310 | 3645 | 4040 | 4505 | 5000 | 5000 | 5000 | 5000 |
| Stroke | Input power | | Discharge capacity(L/s) |
| min-1 | KW | Horsepower |
| 105 | 1640 | 2200 | 77.65 | 71.05 | 64.73 | 58.72 | 52.99 | 47.56 | 42.42 | 37.58 | 33.03 | 28.77 |
| 90 | 1406 | 1886 | 66.56 | 60.9 | 55.49 | 50.33 | 45.42 | 40.77 | 36.36 | 32.21 | 28.31 | 24.66 |
| 80 | 1250 | 1676 | 59.16 | 54.13 | 49.32 | 44.74 | 40.37 | 36.24 | 32.32 | 28.63 | 25.16 | 21.92 |
| 70 | 1094 | 1467 | 51.76 | 48.36 | 43.16 | 39.14 | 35.33 | 31.71 | 28.28 | 25.05 | 22.02 | 19.18 |
| 60 | 937 | 1257 | 44.37 | 40.6 | 36.99 | 33.55 | 30.28 | 27.18 | 24.24 | 21.47 | 18.87 | 16.44 |
| 50 | 781 | 1048 | 36.97 | 33.83 | 30.83 | 27.96 | 25.23 | 22.65 | 20.2 | 17.89 | 15.73 | 13.7 |
| 1 | | | 0.7395 | 0.6766 | 0.6165 | 0.5592 | 0.5047 | 0.453 | 0.404 | 0.3579 | 0.3146 | 0.274 |
| (Mechanical efficiency 90%,coefficiet of fullness α=100%, and
volumetric efficiency 100%) | | | | |
