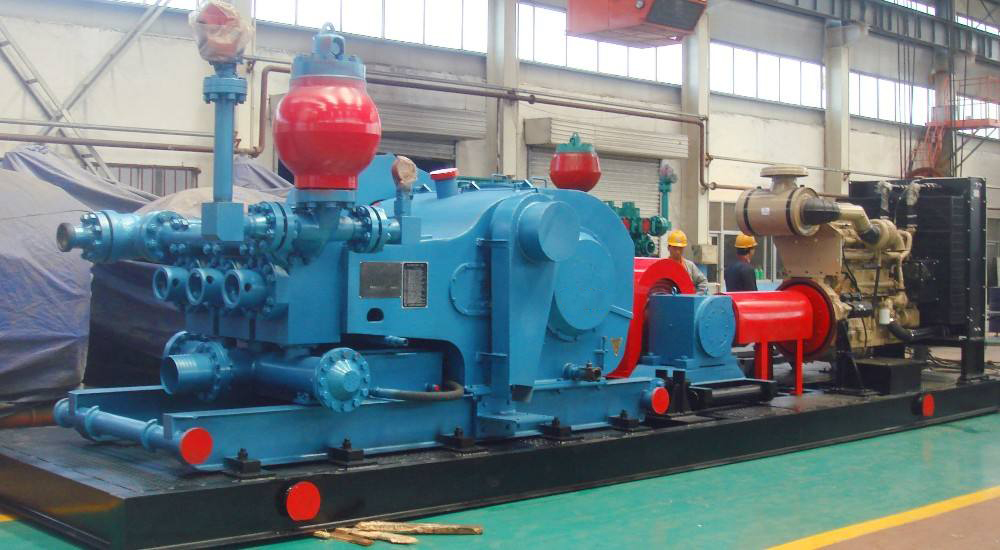

Drilling Mud Pump For RS F-1000 Pump Horsepower 1000 API 7K
Standard
The function of the mud pump
In drilling oil and natural gas wells, it is used to pump drilling
fluid mud to make it circulate and flow for impact. According to
the importance of its
work, it is compared to the heart of the drilling rig.
Mud circulation is a key operation in the rotary drilling process,
and its main functions are as follows:
1. Remove cuttings from the bottom of the well and carry them to
the surface through the annular space.
2. Make mud cake on the well wall to prevent the well wall from
collapsing.
3. Balance or control the pressure of oil, gas and water layers in
the drilled well section to prevent blowout.
4. Handle complex situations downhole. If the bottom of the crack
is encountered, the plugging material is pumped, and when the drill
is stuck, the
crude oil and diesel oil are pumped to release the stuck.
5. Cool the drill bit and lubricate the rotating drill string.
RS-F1000 Mud Pump Technical Parameter
| Pump Model | RS-F1000 |
| Rated input power | 735kw(1000HP) |
| Stroke | 140min-1(140SPM) |
| Stroke Length | 254mm(10") |
| Gear ratio | 4.207:1 |
| Max.working pressure | 34.5MPa |
| Valve | API#6 |
| Max.cylinder diameter | 6 3/4" |
| Max.cylinder pressure | 16.4MPa |
| Suction pipe diameter | 305mm(12") |
| Discharge pipe diameter | 5 1/8" Flange(5000psi) |
| Pinion diameter | 196.9mm(7 3/4") |
| Key | 50.8×50.8(2"×2") |
| Dimensions(mm) | 4267×2350×1862 |
| Weight of main machine | 186442kg |
| Table of Relation between Discharge and Pressure of RS-F1000 mud
pump |
| | | | | | | | | |
| Cylinder diameter | | in | 6 3/4 | 6 1/2 | 6 1/4 | 6 | 5 1/2 | 5 | 4 1/2 |
| Discharge pressure | Mpa | 16.4 | 17.6 | 19.1 | 20.7 | 24.6 | 29.8 | 34.5 |
| psi | 2410 | 2725 | 3100 | 3555 | 4125 | 4840 | 5000 |
| Stroke | Input power | | Discharge capacity(L/s) |
| min-1 | KW | Horsepower |
| 140 | 735 | 1000 | 41 | 38 | 35.2 | 32.4 | 27.2 | 22.5 | 18.2 |
| 130 | 683 | 929 | 38.07 | 35.28 | 32.68 | 30.1 | 25.26 | 20.89 | 16.9 |
| 120 | 630 | 857 | 35.14 | 32.57 | 27.86 | 27.77 | 23.3 | 19.28 | 15.6 |
| 110 | 578 | 786 | 32.21 | 29.85 | 27.66 | 25.46 | 21.37 | 17.68 | 14.3 |
| 100 | 525 | 714 | 29.28 | 27.14 | 25.14 | 23.14 | 19.43 | 16.07 | 13 |
| 1 | 5.25 | 7.14 | 0.293 | 0.271 | 0.251 | 0.231 | 0.194 | 0.161 | 0.13 |
| (Mechanical efficiency 90%,coefficiet of fullness α=100%, and
volumetric efficiency 100%) | |
Supply Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT,
A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220,
C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600,
FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
