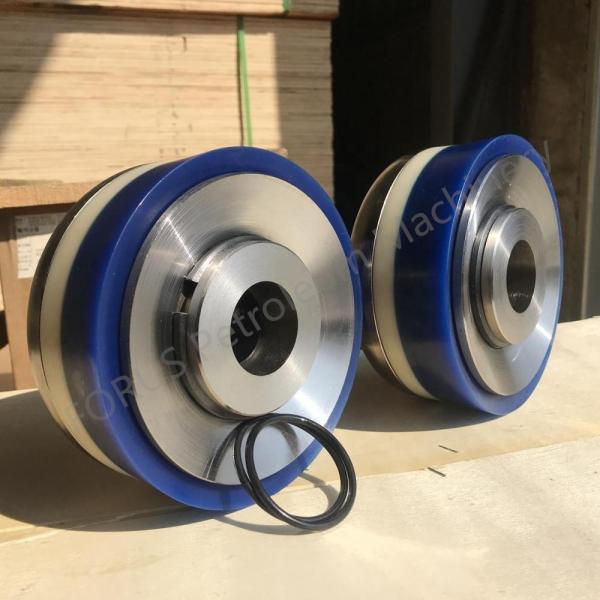

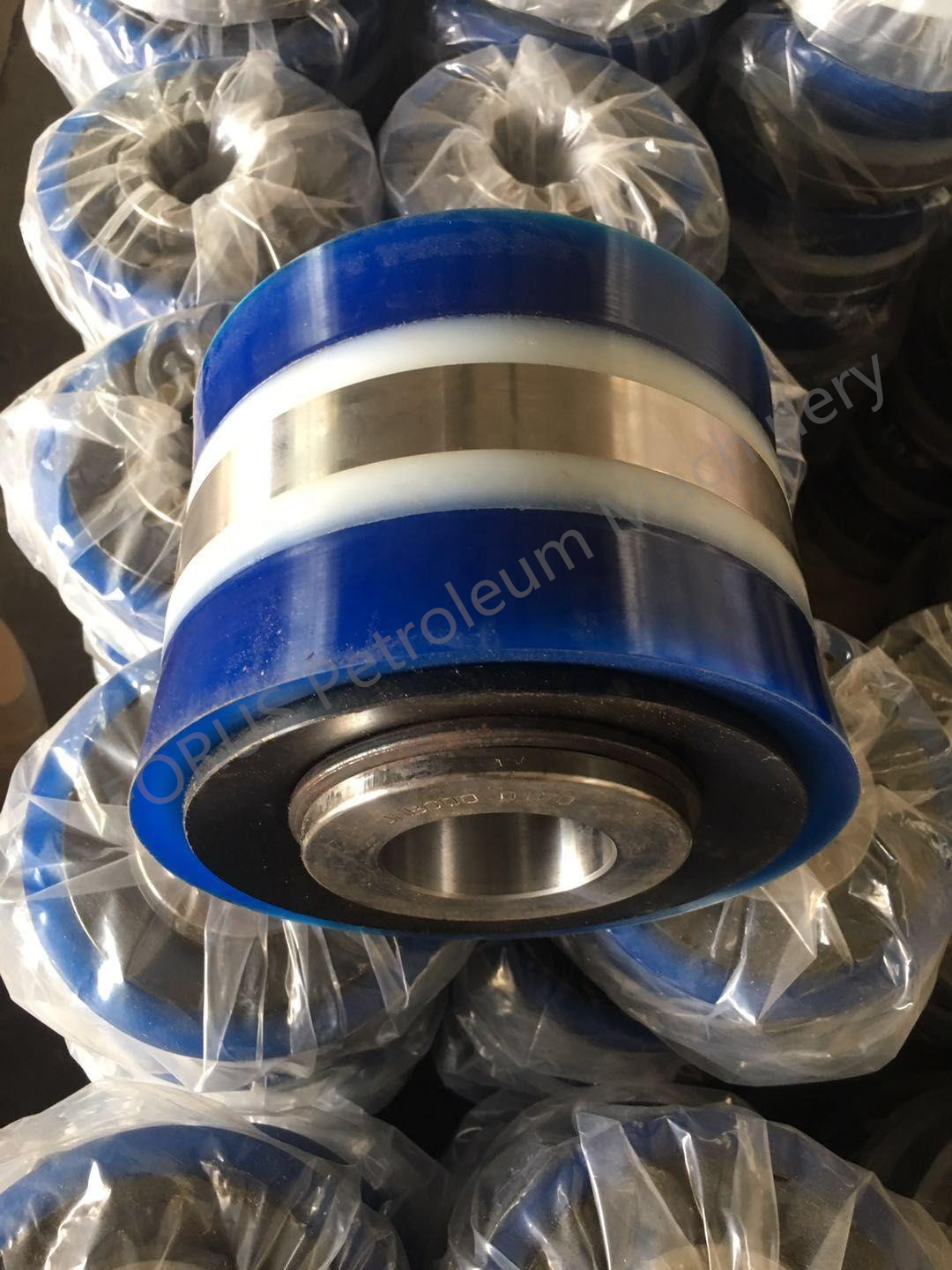

Mud Pump Piston For BOMCO/EMSCO/ NOV /GD Mud Pump Piston
Mud Pump Piston Product Description
The piston assembly is one of the main parts of the hydraulic end
system of the mud pump, and it is also one of the vulnerable parts
in the drilling work. The discharge pressure of the mud pump is
generated by the reciprocating linear movement of the piston
assembly in the piston. The piston assembly is composed of a piston
core, rubber, circlip, pressure plate, etc. The material of the
piston core is 42CrMo, and the material of the piston rubber is
nitrile rubber or polyurethane rubber.
Product Feature
* USA Imported Polyurethane Technology
* World Leading HIGH PRESSURE Technology
* Bonded Flex Lip Type, Dual Durometer
* 7500 Psi High Pressure & High Abrasion Resistance
* Extremely Long & Reliable Service Life
* Chinese Dual Duro & USA Dual Duro Polyurethane for Options
* Fully interchangeable with Green Duo & world major piston types
Mud Pump Part List
| Item | Product Description | Mud Pump Model | Part No. |
| 1 | Hydraulic cylinder assembly | F-1300/F-1600 | AH130102050100 |
| 2 | Cylinder head flange | F-1300/F-1600 | AH1301010502 |
| 3 | Cylinder head | F-1300/F-1600 | AH1301010503 |
| 4 | Plug board assembly | F-1300/F-1600 | AH130101050400 |
| 5 | Valve rod guides(lower) | F-1300/F-1600 | AH130101050500 |
| 6 | Cylinder head plug | F-1300/F-1600 | AH130101050600 |
| 7 | Positioning plate | F-1300/F-1600 | AH1301010507 |
| 8 | Cylinder head gasket | F-1300/F-1600 | AH1301010508 |
| 9 | Cylinder liner lock ring | F-1300/F-1600 | AH1301010518 |
Supply Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT,
A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220,
C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600,
FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
