Mud Pump Parts Bi-Metal Liner Used For BOMCO F-1600 Mud Pump

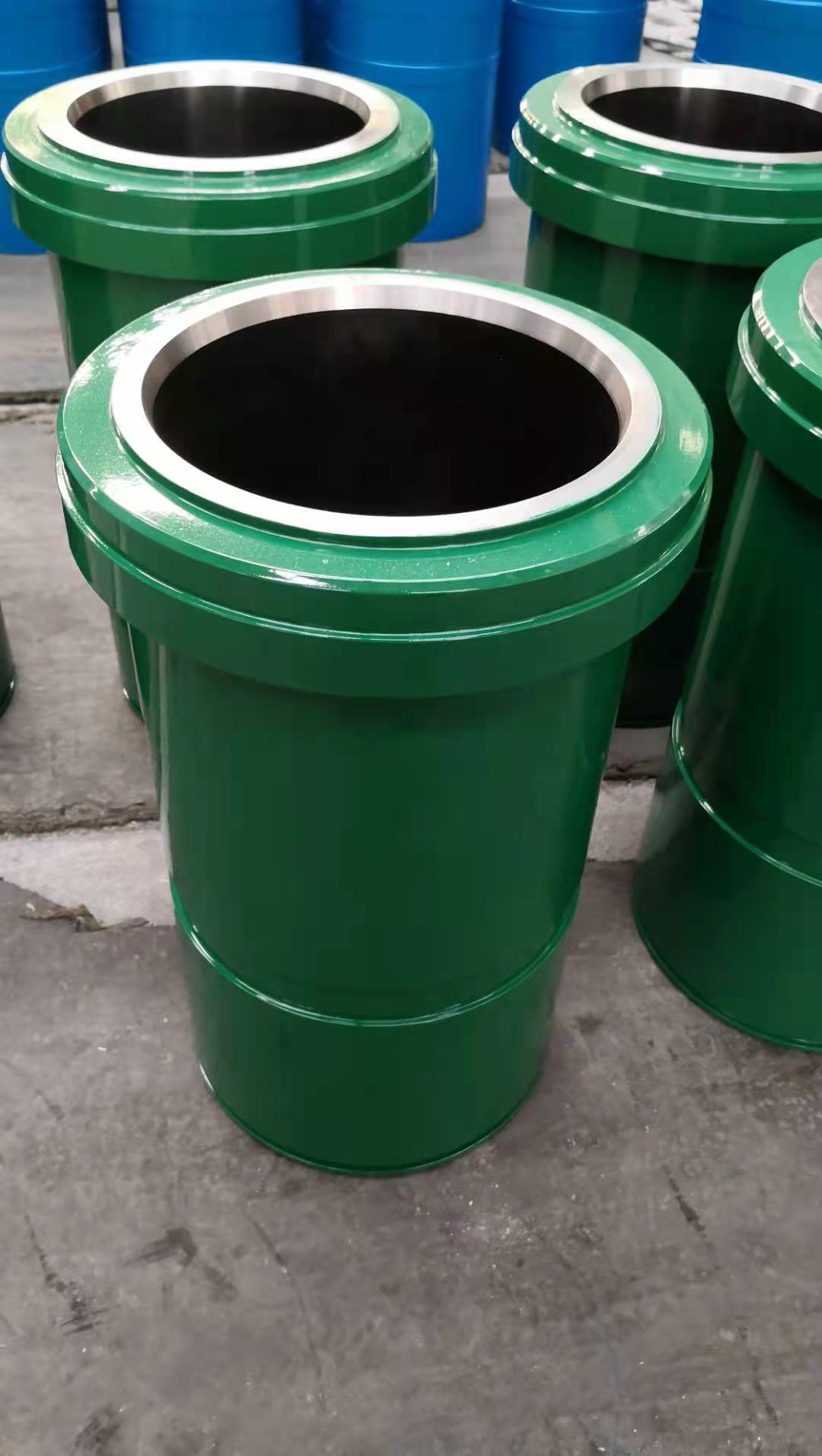

Description of Bimetal Liner
The inner and outer layers are tightly bound together.The outer 45#
steel is wear-resistant and the inner high chromium cast iron is
wear-resistant
and corrosion-resistant. The hardness after heat treatment reaches
62 Rockwell C grade.
Our company's production of bimetal cylinder liner strictly control
the size within the tolerance range, to ensure easy installation,
high inner sleeve
finish, wear resistance, corrosion resistance, long service life,
suitable for all kinds of harsh working environment.
Coat :45# forging, tensile strength σ B >610MPa, yield strength
σ S >450MPa, elongation > 17%, hardness HB180-200.
Inner sleeve: high chromium cast iron (centrifugal casting), anneal
hardness HRC≤40, quenching hardness HRC 60-67.
Chemical composition: C 2.8% - 3.1%, 26% 28% Cr, Si 0.6% 0.9%, Mn
0.5% 1% Mo 0.5%-0.8%, S, P <0.05%;
Applicable industries
Petroleum industry, chemical industry, food processing industry,
etc., It can be processed with drawings and samples.
Mud Pump List Of Mud Pump Parts For F-1600
| Item | Product Description | Mud Pump Model | Part No. |
| 1 | Hydraulic cylinder assembly | F-1300/F-1600 | AH36002-05.01.00 |
| 2 | Cylinder head flange | F-1300/F-1600 | AH36001-05.02 |
| 3 | Cylinder head | F-1300/F-1600 | AH36001-05.03 |
| 4 | Plug board assembly | F-1300/F-1600 | AH36001-05A.04.00 |
| 5 | Valve rod guides(lower) | F-1300/F-1600 | AH36001-05A.05.00 |
| 6 | Cylinder head plug | F-1300/F-1600 | AH36001-05A.06.00 |
| 7 | Positioning plate | F-1300/F-1600 | AH36001-05A.07 |
| 8 | Cylinder head gasket | F-1300/F-1600 | AH36001-05.08 |
| 9 | Discharge manifold | F-1300/F-1600 | AH36001-05.09 |
| 10 | Valve spring | F-1300/F-1600 | AH33001-05.16A |
| 11 | Valve assembly API 7 through-hole | F-1300/F-1600 | AH36001-05.12A.00 |
| 12 | Valve cover sealing ring | F-1300/F-1600 | AH36001-05.13 |
| 13 | Valve cover | F-1300/F-1600 | AH36002-05.02 |
| 14 | Cylinder liner seal | F-1300/F-1600 | AH36001-05.15 |
| 15 | Wearing plate | F-1300/F-1600 | AH36002-05.03 |
| 16 | Cylinder liner flange | F-1300/F-1600 | AH36001-05.17 |
| 17 | Cylinder liner gland | F-1300/F-1600 | AH36001-05.18.00 |
| 18 | Piston rod | F-1300/F-1600 | AH36002-05.05 |
| 19 | Adapter NPT3/8 | F-1300/F-1600 | AH36002-05.04.00 |
| 20 | O-ring φ200×7 | F-1300/F-1600 | 5.30301E+17 |
| 21 | Cylinder liner lock ring | F-1300/F-1600 | AH36001-05.22 |
| 22 | Bi-metal cylinder liner | F-1300/F-1600 | AH130102051200 |
| 23 | Clamp assembly | F-1300/F-1600 | AH36002-05.06.00 |
| 24 | Elbow NPT3/8-M22X1.5 | F-1300/F-1600 | AH36002-05.08 |
| 25 | Cylinder end cover | F-1300/F-1600 | AH36001-05.27
|
Company Introduction
FORUS company is engaged exporting oil drilling machine and
equipment. Our goal is to meet customers’ different requirements,
supply high
quality products with best price.
We has a professional team to provide efficiently service, quickly
action. Integrity is the cornerstone of our development. Our
equipments have
exported many countries, including Kuwait, UAE., Egypt, Indonesia,
Russia, USA, Kazakhstan etc., and we are widely praised by our
clients.
Supply Mud Pump Parts Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT,
A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220,
C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600,
FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
