Anti-skid Mat Customized Exported To Abroad Used For Oil Drilling
Product Description

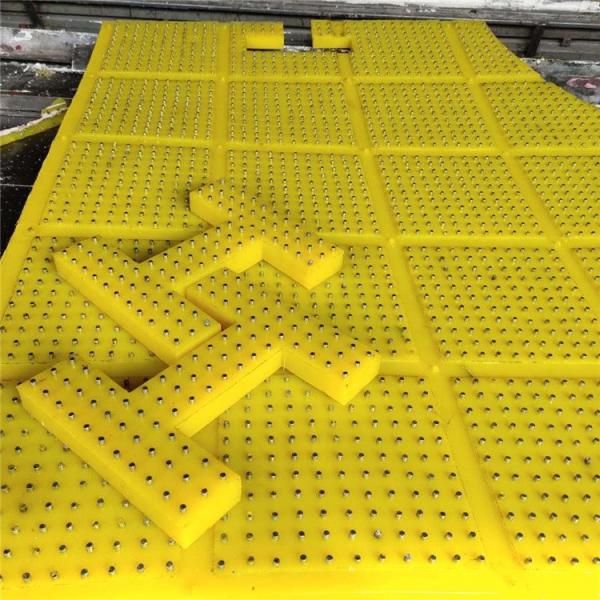

Polyurethane anti-skid pad adopts polyurethane board as the main
board, which has the characteristics of high strength, good
elasticity, oil and
solvent resistance, good low temperature performance and good aging
resistance. There are multiple sewage grooves arranged vertically
and
horizontally on the surface, oil or water can flow into the grooves
and be discharged in time, reducing the influence of oil or water
on the anti-skid
effect. The metal rivets protruding from a certain height and the
polyurethane rubber protruding rubber particles with better wear
resistance make
the utility model have excellent anti-skid performance and long
service life, and the elastic rubber plate or resin plate anti-skid
pad can also be
used. It can effectively reduce the damage to the rotary table and
the drilling tool during the operation of the drilling rig.
Parameter of Anti-skid mat for drilling rigs:
1. Standard: ZP-175, ZP-275, ZP-375, ZP-205
2. Non-standard: The middle channel of the two drill pipe boxes and
the periphery of the turntable are laid. Various sizes of anti-skid
pads can be
processed upon request.
3. Color: yellow, which acts as a safety warning.
4. Thickness: 30mm
5. Material: high wear-resistant, oil-resistant, aging-resistant
high-strength polyurethane
Performance:
It is made of polyurethane rubber, with high strength, good wear
resistance, weather resistance, and good aging. There are multiple
sewage
grooves arranged vertically and horizontally on the surface, which
can remove oil or water pollution in time and reduce the anti-skid
effect of oil or
water pollution. influence, while superficially regularly
Staggered arrangement of protruding rubber particles and metal
rivets embedded in the protruding surface of the main body, metal
rivets and
protruding rubber particles protruding from the upper surface, have
excellent anti-slip performance, and can effectively reduce the use
of the drill.
and damage to equipment.
| Material | Polyurethane rubber | Model | D3140 |
| No. | Item | Value |
| 1 | Shore hardness | 90±2 |
| 2 | 100% Stress at definite elongation | 5.8Mpa |
| 3 | 300% Stress at definite elongation | 10.6Mpa |
| 4 | Tensile Strength | 47Mpa |
| 5 | Elongation at break | 580 |
| 6 | Tear Strength (right angle) | 98(KN/M) |
| 7 | Tear Strength (pants type) | 39(KN/M |
| 8 | Springback | 36% |
| 9 | Density | 1.27(g/cm³) |
| 10 | DIN Abrasion | 50 mm³ |
Features:
1. Polyurethane rubber material, high strength, high wear
resistance, oil resistance and aging resistance.
2. Protruding rivets or rubber particles can increase friction and
play a non-slip effect.
3. The vertical and horizontal sewage groove design enables the
effective discharge of oil and water.
4. Elastic rubber base material to protect the drill disc and rig
and prolong its service life.
