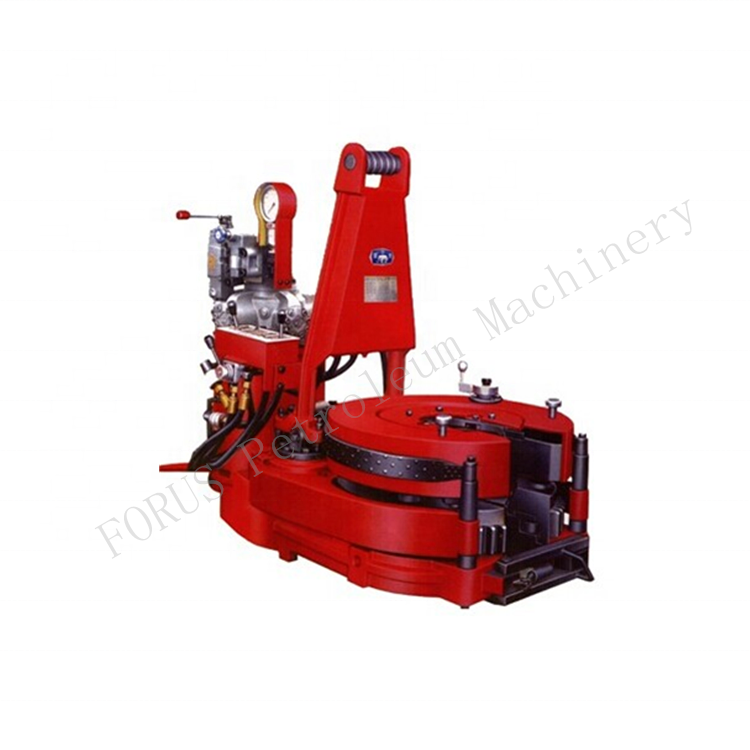

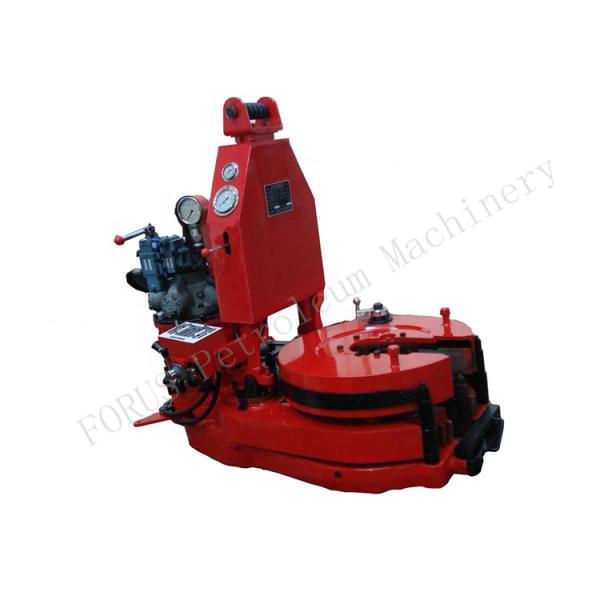

Drill Pipe Hydraulic Sucker Rod Power Tong API 7K 2-7/8"-8"

Product Categories

Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Drill Pipe Hydraulic Sucker Rod Power Tong API 7K 278quot8quot
Brand: FORUS
Price: 1 USD

Add to Cart

Wellhead Tools Drill Pipe Hydraulic Power Tong API7K Standard

Wellhead Tools Applications

Drill pipe power tongs are suitable for oil and mine drilling, which is safe and labor-saving and improves work efficiency.

Power tongs have the following features:

1. Adopt pneumatic power to move and drive backup pliers

2. Integral mechanism composed of twist pliers and torque pliers

3. Shifting is allowed during operation

4. The old and new drill pipe joints can be clamped reliably

5. The maximum torque and speed can be run in both directions

Model	_ZQ127/25Y	_ZQ162-50	_ZQ203-100	_ZQ203-100-II	_ZQ203-125
_{Pipe Size Range of Master Tong}	_Φ73-140	_Φ85-162	_Φ101-203	_Φ114-203	_Φ101-203
_{Pipe Size Range of Master Tong}	_{27/8 - 51/2}	_{23/8 - 5}	_{31/2 - 8}	_{27/8 - 8}	_{31/2 - 8}
_{High Gear Rated Torque}	_3500N.m	_9500N.m	_9500N.m	_9500N.m	_10000N.m
_{High Gear Rated Torque}	_2581ft-lbs	_7007ft-lbs	_7007ft-lbs	_7007ft-lbs	_7370ft-lbs
_{Low Gear Rated Torque}	_25000N.m	_50000N.m	_100000N.m	_100000N.m	_145000N.m
_{Low Gear Rated Torque}	_18349ft-lbs	_36880ft-lbs	_73756ft-lbs	_73750ft-lbs	_106940ft-lbs
_{High Gear Rated Speed}	_≤65r/min	_60r/min	_40r/min	_40r/min	_33r/min
_{Low Gear Rated Speed}	_≤10r/min	_4.1r/min	_2.7r/min	_2.7r/min	_2.2r/min
_{Rated Operation Pressure}	_{16 MPa}	_{14 MPa}	_{16 MPa}	_{16.6 MPa}	_{18 MPa}
_{Rated Operation Pressure}	_{2320 psi}	_{2030 psi}	_{2320 psi}	_{2400 psi}	_2610psi
_{Max. Flow}	_{120 L/min}	_{120 L/min}	_{114 L/min}	_{114 L/min}	_{120 L/min}
_{Max. Flow}	_{32 gpm}	_{31.7 gpm}	_{30 gpm}	_{30 gpm}	_32gpm
_{Pneumatic Operation Pressure}		_0.5~0.9MPa	_0.5~0.9MPa	_0.5~0.9MPa	_0.6~1.0MPa
_{Pneumatic Operation Pressure}		_{72.5~130.5psi}	_{72.5~130.5psi}	_{72.5~130.5psi}	_{72.5~130.5psi}
_{Dimension :L x W x H}	_{1250x 780 x 1000}	_{1570 x 800 x 1190}	_{1700 x 1000 x 1400}	_{1760 x 1000 x 1630}	_{1750 x 1060x 1680}
_{Weight(including Backup Tong)}	_650kg	_1500kg	_2400kg	_2500kg	_2500kg
_{Weight(including Backup Tong)}	_1433lbs	_3310lbs	_5291lbs	_5510lbs	_5512lbs
