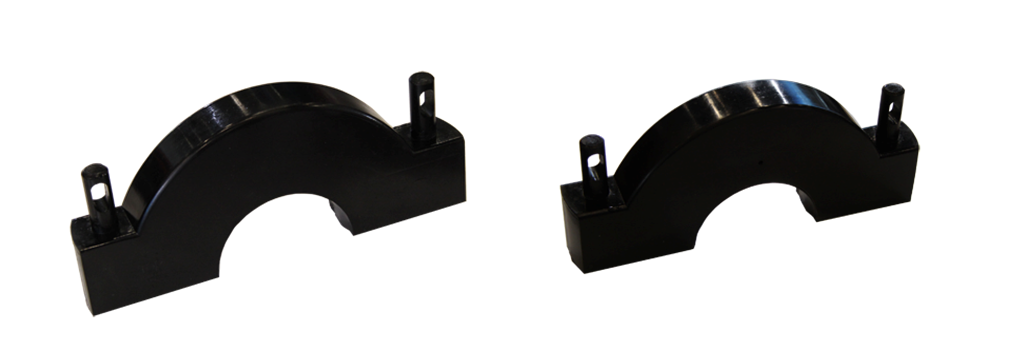

    3 1/2 - 5" API 16A Blowout Preventer Equipment Variable Diameter Ram Rubber Core

    Ask Lasest Price
    Brand Name : SHENKAI
    Model Number : 3-1/2" To 5"
    Certification : API16A
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 80sets per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    3 1/2 - 5" API 16A Blowout Preventer Equipment Variable Diameter Ram Rubber Core


    3-1/2 To 5 Inch API 16A Blowout Preventer Equipment Variable Diameter Ram Rubber Core​


    Product Description


    The product can match and interchange most of domestic BOP manufactories, (such as Shanghai Shenkai, Huabei Rongsheng, Chuanyou


    Jingkong, Baoji Oil,Jiangsu Xinde, Jiangsu Sanyi, etc). Over the years usage in the oil fields, it has been proved that all the technical


    requirements and performance of our products can reach the standards of shaffer sealing elements for replacement.


    It can be customized according to customers’ specific requirements of temperature, pressure and environment conditions.


    Temperature Range:—45 ℃~180℃


    Variable Bore Rams Rubber Core Type and Size


    BOP ModelVariable Bore Rams Rubber CoreShearing Blind Ram Rubber Core
    Type  2 ⅜ -3 ½2 ⅞-53 ½ -54 ½ -5 ½4 ½ -75--7SBR
    Bore Size (in)W. P.
     (psi)
    S7 1/165000
    10000
    115000     √
    10000
    15000
    13 ⅝5000 √ √  √
    10000 √ √  √
    15000√  √ √  √
    21 ¼2000   √
    20 ¾3000
    21 ¼5000   √
    U115000 √  √
    10000 √  √
    15000
    13 ⅝5000 √ √ √ √ √
    10000 √ √ √ √ √
    15000

    Variable Bore Rams Rubber Core Technical Parameter


    ItemPhysical PropertyVariable Diameter Ram Rubber Core
    ≤35MPa≥70MPa
    Technical SpecCurrently formulationTechnical SpecCurrently formulation
    1Shore A Hardness Degree72±37382±380
    2Tensile Stress (Mpa)≥1824.1≥1827.1
    3Tensile Set (%)≥400407.4≥400415.5
    4Tear Strength (KN/m)≥4042.1≥4050.1
    5100℃×24h Compression Set %≤3027≤3030
