1.050" - 4 1 / 2" Oilfield Drilling Oil Tubing Pipe J55 API 5CT

Ask Lasest Price
Brand Name :	FORUS
Model Number :	1.050"To 4 1/2"
Certification :	API 5CT
Payment Terms :	L/C, T/T, Western Union
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

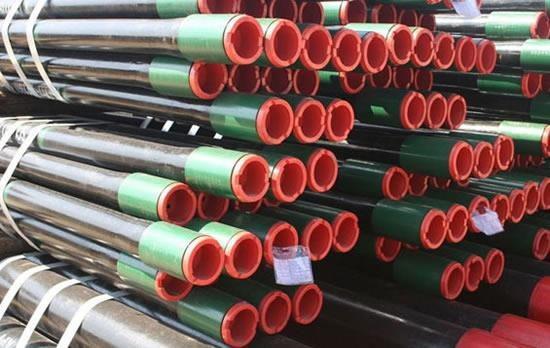

1.050" - 4 1 / 2" Oilfield Drilling Oil Tubing Pipe J55 API 5CT

Drilling Oil Tubing Pipe J55 API 5CT 1.050" To 4 1/2" New Oilfield Equipment

API 5CT Oil Tubing

Grade: H40, J55, K55, L80, L80-13Cr, L80-9Cr, N80-1, N80Q, P110

O.D: 1.050"-4 1/2"

Length: R1, R2, R3

Connection: EU, NU, IJ, Premium Connection (NEW , PH-6)

Labels				OD	Nominal Liner Masses			WT	Type of end finish
1	2			OD	Non-upset T&C	Ext.Upset T&C	Interg. Joint	WT	Type of end finish
1	NU T&C	EU T&C	IJ	D mm	Kg/m	Kg/m	Kg/m	t mm	H40	J55	L80 R95	N80 Type 1, Q	C90	T95	P110
1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
1.660 1.660 1.660	2.09 2.30 3.03	- 2.40 3.07	2.10 2.33 -	42.16 42.16 42.16	- 3.42 4.51	- 3.57 4.57	3.13 3.47 -	3.18 3.56 4.85	PI PNUI PU	PI PNUI PU	- PNUI PU	- PNUI PU	- PNUI PU	- PNUI PU	- - PU
1.900 1.900 1.900 1.900 1.900	2.40 2.75 3.65 4.42 5.15	- 2.90 3.73 - -	2.40 2.76 - - -	48.26 48.26 48.26 48.26 48.26	- 4.09 5.43 6.58 7.66	- 4.32 5.55 - -	3.57 4.11 - - -	3.18 3.68 5.08 6.35 7.62	PI PNUI PU - -	PI PNUI PU - -	- PNUI PU P P	- PNUI PU - -	- PNUI PU P P	- PNUI PU P P	- - PU - -
2.063 2.063	3.24 4.50	- -	3.25 -	52.40 52.40	- -	- -	4.84 -	3.96 5.72	PI P	PI P	PI P	PI P	PI P	PI P	- P
2-3/8 2-3/8 2-3/8 2-3/8 2-3/8	4.00 4.60 5.80 6.60 7.35	- 4.70 5.95 - 7.45	- - - - -	60.32 60.32 60.32 60.32 60.32	5.95 6.85 8.63 9.82 10.94	- 6.99 8.85 - 11.09	- - - - -	4.24 4.83 6.45 7.49 8.53	PU PNU - - -	PN PNU - - -	PN PNU PNU P PU	PN PNU PNU - -	PN PNU PNU P PU	PN PNU PNU P PU	- PNU PNU - -
2-7/8 2-7/8 2-7/8 2-7/8 2-7/8 2-7/8	6.40 7.80 8.60 9.35 10.50 11.50	6.50 7.90 8.70 9.45 - -	- - - - - -	73.02 73.02 73.02 73.02 73.02 73.02	9.52 11.61 12.80 13.91 15.63 17.11	9.67 11.76 12.95 14.06 - -	- - - - - -	5.51 7.01 7.82 8.64 9.96 11.18	PNU - - - - -	PNU - - - - -	PNU PNU PNU PU P P P	PNU PNU PNU - - -	PNU PNU PNU PU P P P	PNU PNU PNU PU P P P	PNU PNU PNU - - -
3-1/2 3-1/2 3-1/2 3-1/2 3-1/2 3-1/2 3-1/2	7.70 9.20 10.20 12.70 14.30 15.50 17.00	- 9.30 - 12.95 - - -	- - - - - - -	88.90 88.90 88.90 88.90 88.90 88.90 88.90	11.46 13.69 15.18 18.90 21.28 23.07 25.30	- 13.84 - 19.27 - - -	- - - - - - -	5.49 6.45 7.34 9.52 10.92 12.09 13.46	PU PNU PN - - - -	PN PNU PN - - - -	PN PNU PN PNU P P P	PN PNU PN PNU - - -	PN PNU PN PNU P P P	PN PNU PN PNU P P P	- PNU - PNU - - -
4 4 4 4 4 4	9.50 10.70 13.20 16.10 18.90 22.20	- 11.00 - - - -	- - - - - -	101.60 101.60 101.60 101.60 101.60 101.60	14.14 - 19.64 23.96 28.13 33.04	- 16.37 - - - -	- - - - - -	5.74 6.65 8.38 10.54 12.70 15.49	PN PU - - - -	PN PU - - - -	PN PU P P P P	PN PU - - - -	PN PU P P P P P	PN PU P P P P P	- - - - - -
4-1/2 4-1/2 4-1/2 4-1/2 4-1/2 4-1/2 4-1/2	12.60 15.20 17.00 18.90 21.50 23.70 26.10	12.75 - - - - - -	- - - - - - -	114.30 114.30 114.30 114.30 114.30 114.30 114.30	18.75 22.62 25.30 28.13 32.00 35.27 38.84	18.97 - - - - - -	- - - - - - -	6.88 8.56 9.65 10.92 12.70 14.22 16.00	PNU - - - - - -	PNU - - - - - -	PNU P P P P P P	PNU - - - - - -	PNU P P P P P P	PNU P P P P P P	- - - - - - -
P--plain end; N--do not thicken with threaded and coupling; U--threaded and coupling with external upset ends; I--whole joints.
A: shown with unit length of threaded and coupling nominal weight (di2~4 bar) is for informational purposes only.B: Martensitic chromium steel (L80 and 9Cr) density is different from carbon steel. Therefore, the weight given in the table is not an exact value for Martensitic chromium steel. Weight correction factor of 0.989.C: no thicker tubing coupling supplied with standard or special chamfering and coupling. Tubing with external upset ends supplied with a standard coupling, a special collar chamfered collar or special clearance.

Outside Diameter,Wall Thickness and Weight Tolerance

Item	Tolerance
Outside Diameter	D,114.3mm,±0.79mm D>=114.3mm,±1.0-0.5%D
Wall Thickness	-12.5%±
Weight	Single Length	+6.5%,-3.5%
Carloads	-1.75%

Chemical Composition

Grade	Chemical Composition%
c	Mn	Mo	Cr	Ni	Cu	P	S	Si
min	max	min	max	min	max	min	max	max	max	max	max	max
J55	-	-	-	-	-	-	-	-	-	-	0.030	0.030	-
K55	-	-	-	-	-	-	-	-	-	-	0.030	0.030	-
N80	-	-	-	-	-	-	-	-	-	-	0.030	0.030	-
L80-1	-	0.43	-	1.90	-	-	-	-	0.25	0.35	0.030	0.030	0.45
L80-13Cr	0.15	0.22	0.25	1.00	-	-	12.0	14.0	0.50	0.25	0.020	0.010	1.00
C90-1	-	0.35	-	1.20	0.25	0.85	-	1.50	0.99	-	0.020	0.010	-
C95	-	0.45	-	1.90	-	-	-	-	-	-	0.030	0.030	0.045
P110	-	-	-	-	-	-	-	-	-	-	0.030	0.030	-

Lengths

	R1	R2	R3
Tubing	6.10-7.32	8.53-9.75m	11.58-12.80m
Casing	4.88-7.62m	7.62-10.36m	10.36-14.63m
Puip Joint	0.5-0.6m(2FEET-20FEET)
